Centos 6.4 KVM安装和配置
测试使用环境:
服务器:Dell R710 CPU型号 物理CPU颗数 内存大小和数量
[root@localhost ~]# cat /proc/cpuinfo | grep name | cut -d: -f2 | uniq -c
16 Intel(R) Xeon(R) CPU L5520 @ 2.27GHz
[root@localhost ~]# cat /proc/cpuinfo | grep physical | sort -n | uniq -c
16 address sizes : 40 bits physical, 48 bits virtual
8 physical id : 0
8 physical id : 1
##说明两颗物理cpu
[root@localhost ~]# dmidecode|grep -A5 "Memory Device"|grep Size | cut -d: -f2 | sort -n | uniq -c
10 No Module Installed
8 4096 MB
##接了8根内存,每根内存大小4G
##还有相关命令
##dmidecode | grep -A16 "Memory Device" | grep Speed | sort -n | uniq -c
[root@localhost ~]# dmidecode|grep 'Maximum Capacity'
Maximum Capacity: 288 GB
操作系统Centos 6.4 64位系统
[root@localhost ~]# cat /etc/issue
CentOS release 6.4 (Final)
Kernel r on an m
本文介绍如何安装KVM,在宿主机上如何安装操作系统,添加分离磁盘,软驱,光驱和更改ISO镜像文件,如何克隆Guest系统主机。
一、检查CPU是否支持虚拟化。(在主板BIOS中开启CPU的VirtualizationTechnology)
[root@localhost ~]# uname -a
Linux localhost.localdomain 2.6.32-358.2.1.el6.x86_64 #1 SMP Wed Mar 13 00:26:49 UTC 2013 x86_64 x86_64 x86_64 GNU/Linux
[root@localhost ~]# grep -E -o 'vmx|svm' /proc/cpuinfo
vmx
二、安装kvm
[root@localhost ~]#yum -y install qemu-kvm libvirt python-virtinst bridge-utils
或者
##yum -y groupinstall 'Virtualization' 'Virtualization Client' 'Virtualization Platform' 'Virtualization Tools'
##查看模块
[root@localhost ~]# lsmod | grep kvm
kvm_intel 53484 6
kvm 316506 1 kvm_intel
a.网卡桥接配置
[root@localhost ~]# cat /etc/sysconfig/network-scripts/ifcfg-em1
DEVICE="em1"
BOOTPROTO="none"
HWADDR="00:24:E8:60:49:66"
NM_CONTROLLED="yes"
ONBOOT="yes"
TYPE="Ethernet"
IPADDR=192.168.18.138
NETMASK=255.255.255.192
GATEWAY=192.168.18.129
DNS1=202.102.134.68
DNS2=202.102.128.68
IPV6INIT=no
USERCTL=no
BRIDGE=br0
[root@localhost ~]# cat /etc/sysconfig/network-scripts/ifcfg-br0
DEVICE="br0"
BOOTPROTO="none"
HWADDR="00:24:E8:60:49:66"
ONBOOT="yes"
TYPE="Bridge"
IPADDR=192.168.18.138
NETMASK=255.255.255.192
GATEWAY=192.168.18.129
DNS1=202.102.134.68
DNS2=202.102.128.68
IPV6=no
USERCTL=no
##重启网卡
/etc/init.d/network restart
[root@localhost ~]# ip route list
192.168.18.128/26 dev br0 proto kernel scope link src 192.168.18.138
192.168.122.0/24 dev virbr0 proto kernel scope link src 192.168.122.1
169.254.0.0/16 dev br0 scope link metric 1006
default via 192.168.18.129 dev br0
[root@localhost ~]# brctl show
bridge name bridge id STP enabled interfaces
br0 8000.0024e8604966 no em1
virbr0 8000.52540098e2ed yes virbr0-nic
b.创建虚拟机(创建宿主机的Guest系统)Guest系统可以是linux 或者windows等系统
我们使用管理工具virt-install
##创建存储镜像目录
[root@localhost ~]# mkdir -p /home/kvm/images
安装guest操作系统
[root@localhost ~]# virt-install –connect qemu:///system
-n win2003
-r 1024
–vcpus=2
–disk path=/home/kvm/images/win2003.img,cache=writeback,size=10
-c /home/iso/WIN_2003.iso
–vnc –vnclisten=0.0.0.0 –vncport=5901 –noautoconsole
–os-type windows
–accelerate –network bridge=br0
–hvm –os-variant=win2k3
##下面对virt-install命令做简单介绍,详细可以查看virt-install –help
–connect=URI
##连接到虚拟机管理程序与libvirt的URI,如qemu:///system
-r MEMORY, –ram=MEMORY
##分配虚拟机实例(Guest)内存,单位为M
-n NAME, –name=NAME
##虚拟机实例(Guest)的名称
–vcpus=VCPUS
##配置实例(Guest)CPU数目
–disk path=DISKFILE
##指定实例(Guest)存储路径及其镜像
-c CDROM, –cdrom=CDROM
##指定安装镜像所在位置和名称, 它可以是一个ISO映像的路径, 它也可以是一##个URL,从中提取/访问的最小引导ISO映像。
–vnc
##启用VNC远程管理,该选项不被赞同,可以用"–graphics vnc,…"代替
–vnclisten=VNCLISTEN
##可以用"–graphics vnc,listen=LISTEN,…" 代替
–vncport=VNCPORT
##可以用"–graphics vnc,port=PORT,…"代替
–noautoconsole
##不要自动尝试连接到guest虚拟机控制台。默认行为是启动一个VNC客户端显##示的图形控制台
–os-type=OS_TYPE
##优化实例(Guest)配置操作系统类型如linux或windows
–os-variant=OS_VARIANT
##优化实例(Guest)配置一个特定的操作系统(如##win7,winxp,win2k3,win2k8,rhel6)
–hvm
##要求使用完全虚拟化
–accelerate
##加速该选项已经过时可以参考–virt-type qemu
-w NETWORK, –network=NETWORK,opt1=val1,opt2=val2
## 实例(Guest)连接到主机的网络, 网桥–network bridge=br0,用nat路由出站##–network network=default
##==========================================
##列表(Guest) win2003
virsh -c qemu:///system list –all
##启动Guest) win2003
virsh -c qemu:///system start win2003
##关闭(Guest) win2003
virsh -c qemu:///system destroy win2003
##编辑(Guest) win2003配置文件xml
virsh -c qemu:///system edit win2003
##删除(Guest) win2003
virsh -c qemu:///system undefine win2003
##man virsh 可以了解命令
三、我们来创建实例(Guest)win3test
1)首先创建磁盘镜像文件,
文件格式qcow2格式是kvm支持的标准格式,raw格式为虚拟磁盘文件通用格式。
创建文件名win3test.qcow2的磁盘镜像文件名,文件格式为qcow2,磁盘大小为10G
[root@localhost ~]# qemu-img create -f qcow2 /home/kvm/images/win3test.qcow2 15G
Formatting '/home/kvm/images/win3test.qcow2', fmt=qcow2 size=16106127360 encryption=off cluster_size=65536
[[root@localhost ~]# qemu-img info /home/kvm/images/win3test.qcow2
image: /home/kvm/images/win3test.qcow2
file format: qcow2
virtual size: 15G (16106127360 bytes)
disk size: 264K
cluster_size: 65536

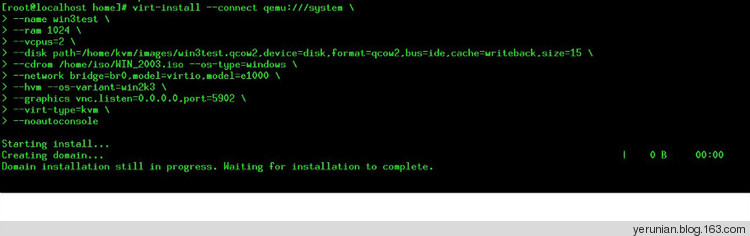

2)内存1G,2核CPU ,15G硬盘安装window 2003系统
virt-install –connect qemu:///system
–name win3test
–ram 1024
–vcpus=2
–disk path=/home/kvm/images/win3test.qcow2,device=disk,format=qcow2,bus=ide,cache=writeback,size=15
–cdrom /home/iso/WIN_2003.iso –os-type=windows
–network bridge=br0,model=virtio,model=e1000
–hvm –os-variant=win2k3
–graphics vnc,listen=0.0.0.0,port=5902
–virt-type=kvm
–noautoconsole
四、我们来创建实例(Guest)linuxtest。
1)创建文件名linuxtest.qcow2的磁盘镜像文件,文件格式为qcow2,磁盘大小为73G
[root@localhost ~]# qemu-img create -f qcow2 /home/kvm/images/linuxtest.qcow2 73G
Formatting '/home/kvm/images/linuxtest.qcow2', fmt=qcow2 size=78383153152 encryption=off cluster_size=65536
##=======================================================
[root@localhost ~]# qemu-img info /home/kvm/images/linuxtest.qcow2
image: /home/kvm/images/linuxtest.qcow2
file format: qcow2
virtual size: 73G (78383153152 bytes)
disk size: 136K
cluster_size: 65536
##=========================================================
2)内存4G,4核CPU ,73G硬盘安装centos 6.4 64位系统
[root@localhost ~]#virt-install –connect qemu:///system
–name linuxtest
–ram 4096
–vcpus=4
–disk path=/home/kvm/images/linuxtest.qcow2,device=disk,format=qcow2,bus=virtio,cache=none,size=73
–location='http://mirrors.163.com/centos/6.4/os/x86_64/'
–os-type=linux
–network bridge=br0,model=virtio,model=e1000
–hvm –os-variant=rhel6
–graphics vnc,listen=0.0.0.0,port=5903
–virt-type=kvm
–noautoconsole

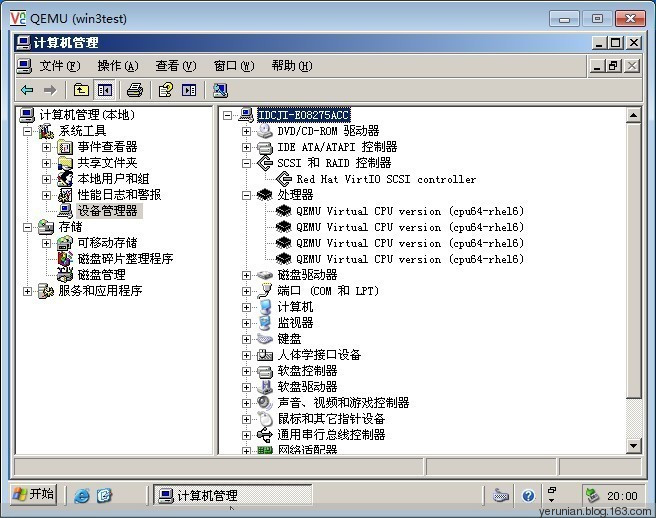

4)virtio半虚拟化驱动来提高性能(微软操作系统的IO性能)
下面安装Windows server 2003 Enterprise
wget http://alt.fedoraproject.org/pub/alt/virtio-win/latest/images/bin/virtio-win-0.1-52.iso
wget http://www.linuxwind.org/download/virtio-win-0.1-52.tar.gz
##解压
tar zxvf virtio-win-0.1-52.tar.gz
安装系统的时候记得按F6从软驱加载驱动
内存4G,4核CPU ,15G硬盘安装windows server 2003系统
[root@localhost ~]# virt-install –connect qemu:///system
–name win3test
–ram 4096
–vcpus=4
–disk path=/home/kvm/images/win3test.qcow2,device=disk,format=qcow2,bus=virtio,cache=none,size=15
–cdrom /home/iso/WIN_2003.iso –os-type=windows
–disk path=/home/iso/virtio-WIN2003-x86.vfd,device=floppy,perms=rw
–network bridge=br0,model=virtio,model=e1000
–hvm –os-variant=win2k3
–graphics vnc,listen=0.0.0.0,port=5902
–virt-type=kvm
–noautoconsole
##===================================
##win3test.xml如下
[root@localhost ~]# cat /etc/libvirt/qemu/win3test.xml
<!–
WARNING: THIS IS AN AUTO-GENERATED FILE. CHANGES TO IT ARE LIKELY TO BE
OVERWRITTEN AND LOST. Changes to this xml configuration should be made using:
virsh edit win3test
or other application using the libvirt API.
–>
<domain type='kvm'>
<name>win3test</name>
<uuid>9fd1785e-430a-2aa7-050a-ed76247c7e64</uuid>
<memory unit='KiB'>4194304</memory>
<currentMemory unit='KiB'>4194304</currentMemory>
<vcpu placement='static'>4</vcpu>
<os>
<type arch='x86_64' machine='rhel6.4.0'>hvm</type>
<boot dev='hd'/>
</os>
<features>
<acpi/>
<apic/>
<pae/>
</features>
<clock offset='localtime'>
<timer name='rtc' tickpolicy='catchup'/>
</clock>
<on_poweroff>destroy</on_poweroff>
<on_reboot>restart</on_reboot>
<on_crash>restart</on_crash>
<devices>
<emulator>/usr/libexec/qemu-kvm</emulator>
<disk type='file' device='disk'>
<driver name='qemu' type='qcow2' cache='none'/>
<source file='/home/kvm/images/win3test.qcow2'/>
<target dev='vda' bus='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
</disk>
<disk type='file' device='floppy'>
<driver name='qemu' type='raw' cache='none'/>
<source file='/home/iso/virtio-WIN2003-x86.vfd'/>
<target dev='fda' bus='fdc'/>
<address type='drive' controller='0' bus='0' target='0' unit='0'/>
</disk>
<disk type='file' device='cdrom'>
<driver name='qemu' type='raw'/>
<source file='/home/iso/WIN_2003.iso'/>
<target dev='hdc' bus='ide'/>
<readonly/>
<address type='drive' controller='0' bus='1' target='0' unit='0'/>
</disk>
<controller type='usb' index='0'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
</controller>
<controller type='fdc' index='0'/>
<controller type='ide' index='0'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
</controller>
<interface type='bridge'>
<mac address='52:54:00:cc:a1:bd'/>
<source bridge='br0'/>
<model type='e1000'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
</interface>
<serial type='pty'>
<target port='0'/>
</serial>
<console type='pty'>
<target type='serial' port='0'/>
</console>
<input type='tablet' bus='usb'/>
<input type='mouse' bus='ps2'/>
<graphics type='vnc' port='5902' autoport='no' listen='0.0.0.0'>
<listen type='address' address='0.0.0.0'/>
</graphics>
<video>
<model type='vga' vram='9216' heads='1'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
</video>
<memballoon model='virtio'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
</memballoon>
</devices>
</domain>
##=============================
##红色部分为软驱,稍后要卸载(做模版的时候)
##先关机分离软驱
[root@localhost ~]# virsh -c qemu:///system destroy win3test
[root@localhost ~]# virsh detach-disk win3test fda –persistent
成功分离磁盘
4)克隆备份虚拟机
a)克隆windows server 2003模板
[root@localhost ~]#virt-clone –original win3test –name 03template –file /home/kvm/images/03template.qcow2
或者
[root@localhost ~]#virt-clone
–original win3test
–name 2003template
–file /home/kvm/images/2003template.qcow2
##编辑配置03template.xml修改vnc端口修改为5905
[root@localhost ~]# vi /etc/libvirt/qemu/03template.xml
##1)添加分离磁盘===========================
##启动(Guest)win3test
[root@localhost ~]# virsh -c qemu:///system start win3test
##创建磁盘格式raw,添加磁盘 vdb
[root@localhost ~]#qemu-img create -f raw /home/kvm/images/vm-add.img 1G
##成功热加载vdb硬盘,硬盘在系统上能正常使用
[root@localhost ~]#virsh attach-disk win3test /home/kvm/images/vm-add.img vdb
–cache none –persistent
##分离磁盘vdb
[root@localhost iso]# virsh detach-disk win3test vdb –persistent
##======================================
##======================================
##关闭(guest)win3test
[root@localhost ~]# virsh -c qemu:///system destroy win3test
##添加IDE硬盘,文件格式qcow2(系统开启来后无法使用新增磁盘,应该是BUG)
[root@localhost ~]# qemu-img create -f qcow2 /home/kvm/images/vm-add.qcow2 1G
[root@localhost ~]# virsh attach-disk win3test /home/kvm/images/vm-add.qcow2 hde
–cache none –persistent –subdriver qcow2
##分离IDE磁盘关,闭系统后操作
[root@localhost iso]# virsh detach-disk win3test hde –persistent
##======================================
##======================================
##(guest)win3test关机状态的时候能成功添加,但是启动报错,应该是BUG
[root@localhost ~]#virsh attach-disk win3test /home/kvm/images/vm-add.qcow2 vdb
–address pci:0000.00.06.0 –persistent
–driver qemu –subdriver qcow2 –sourcetype file
virsh # start win3test
错误:开始域 win3test 失败
错误:internal error Process exited while reading console log output: char device redirected to /dev/pts/0
qemu-kvm: -drive file=/home/kvm/images/vm-add.qcow2,if=none,id=drive-virtio-disk1,format=qcow2: could not open disk image /home/kvm/images/vm-add.qcow2: Invalid argument
##分离vdb磁盘
[root@localhost iso]# virsh detach-disk win3test vdb –persistent
##======================================
##======================================
##(guest)win3test开机状态添加磁盘成功,但是磁盘无法读写。因为磁盘文件为qcow2
[root@localhost ~]#virsh attach-disk win3test /home/kvm/images/vm-add.qcow2 vdb
–persistent
##分离磁盘
[root@localhost ~]# virsh detach-disk win3test vdb –persistent
成功分离磁盘
##======================================
##2)添加分离软驱=============================
##添加fda软盘(guest)win3test关机后操作
[root@localhost ~]#virsh attach-disk win3test /home/iso/virtio-WIN2003-x86.vfdfda
–type floppy –persistent
##分离fda软驱
[root@localhost ~]#virsh detach-disk win3test fda –persistent
成功分离磁盘
##======================================
##3)添加分离光驱=============================
##添加分离光驱(guest)win3test关机后操作
[root@localhost~]# virsh detach-disk win3test hdc –persistent
成功分离磁盘
##加载光驱
[root@localhost ~]#virsh attach-disk win3test /home/iso/WIN_2003.iso hdc
–type cdrom –persistent
##======================================
##换iso镜像文件
[root@localhost ~]#virsh change-media win3test hdc /home/iso/virtio-win-0.1-52.iso
succeeded to complete action update on media
##弹出镜像文件
[root@localhost ~]#virsh change-media win3test hdc –eject
b)克隆Centos 6.2系统模板
virt-clone
–original linuxtest
–name Centostemplate
–file /home/kvm/images/Centostemplate.qcow2
##列表guest系统
[root@localhost ~]#virsh -c qemu:///system list –all
Id 名称 状态
—————————————————-
– linuxtest 关闭
– win3test 关闭
[root@localhost ~]#virt-clone
> –original linuxtest
> –name Centostemplate
> –file /home/kvm/images/Centostemplate.qcow2
正在克隆 linuxtest.qcow2 | 2.0 GB 00:05
Clone 'Centostemplate' created successfully.
##编辑xml修改vnc端口修改为5904
[root@localhost ~]#virsh -c qemu:///system edit Centostemplate
[root@localhost ~]#cat /etc/libvirt/qemu/Centostemplate.xml
<!–
WARNING: THIS IS AN AUTO-GENERATED FILE. CHANGES TO IT ARE LIKELY TO BE
OVERWRITTEN AND LOST. Changes to this xml configuration should be made using:
virsh edit Centostemplate
or other application using the libvirt API.
–>
<domain type='kvm'>
<name>Centostemplate</name>
<uuid>8b5f02f2-ee18-376a-4388-3e8ffff64c06</uuid>
<memory unit='KiB'>4194304</memory>
<currentMemory unit='KiB'>4194304</currentMemory>
<vcpu placement='static'>4</vcpu>
<os>
<type arch='x86_64' machine='rhel6.4.0'>hvm</type>
<boot dev='hd'/>
</os>
<features>
<acpi/>
<apic/>
<pae/>
</features>
<clock offset='utc'/>
<on_poweroff>destroy</on_poweroff>
<on_reboot>restart</on_reboot>
<on_crash>restart</on_crash>
<devices>
<emulator>/usr/libexec/qemu-kvm</emulator>
<disk type='file' device='disk'>
<driver name='qemu' type='qcow2' cache='none'/>
<source file='/home/kvm/images/Centostemplate.qcow2'/>
<target dev='vda' bus='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
</disk>
<controller type='usb' index='0'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
</controller>
<interface type='bridge'>
<mac address='52:54:00:47:13:79'/>
<source bridge='br0'/>
<model type='e1000'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
</interface>
<serial type='pty'>
<target port='0'/>
</serial>
<console type='pty'>
<target type='serial' port='0'/>
</console>
<input type='tablet' bus='usb'/>
<input type='mouse' bus='ps2'/>
<graphics type='vnc' port='5904' autoport='no' listen='0.0.0.0'>
<listen type='address' address='0.0.0.0'/>
</graphics>
<video>
<model type='cirrus' vram='9216' heads='1'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
</video>
<memballoon model='virtio'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
</memballoon>
</devices>
</domain>
##===================================
##启动Centostemplate
[root@localhost ~]# virsh -c qemu:///system start Centostemplate
[root@localhost ~]# virsh -c qemu:///system list –all
Id 名称 状态
—————————————————-
22 Centostemplate running
– linuxtest 关闭
– win3test 关闭
##用VNC连接
##登陆进系统删除网卡的MAC和70-persistent-net.rules然后重启机器(这样网卡不会冲突能启动)
[root@localhost ~]# rm /etc/udev/rules.d/70-persistent-net.rules
##关闭(Guest) Centostemplate
[root@localhost ~]#virsh -c qemu:///system destroy Centostemplate
##删除(Guest) Centostemplate
[root@localhost ~]#virsh -c qemu:///system undefined Centostemplate
##关于网桥,查看mac地址
[root@localhost ~]#brctl showmacs br0
##网桥设置mac生存期
[root@localhost ~]#brctl setageing br0 30
##xml虚拟机配置文件目录
/etc/libvirt/qemu
